Customized professional plastic cable gland m10

FOB Reference Price:Get Latest Price
$0.32 - $3.69 / Piece | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CONWELL
Model Number:
KW-PG16
Size:
10-14mm
Material:
Nylon
Protection Level:
IP68
Product name:
nylon cable glands
Working temperature:
-40~+100
Cable diameter:
10-14mm
Color:
black or gray or white or customised
Thread:
NPT
Function:
Water-prooftesting
OEM/ODM:
Available
Sample:
Supply free sample
Certificate:
ROHS,CE,ISO9001
CONWELL:
Factory
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Professional export packing
Port
SHANGHAI/NINGBO/SHENZHEN/XIAMEN/QINGDAO
Product Details

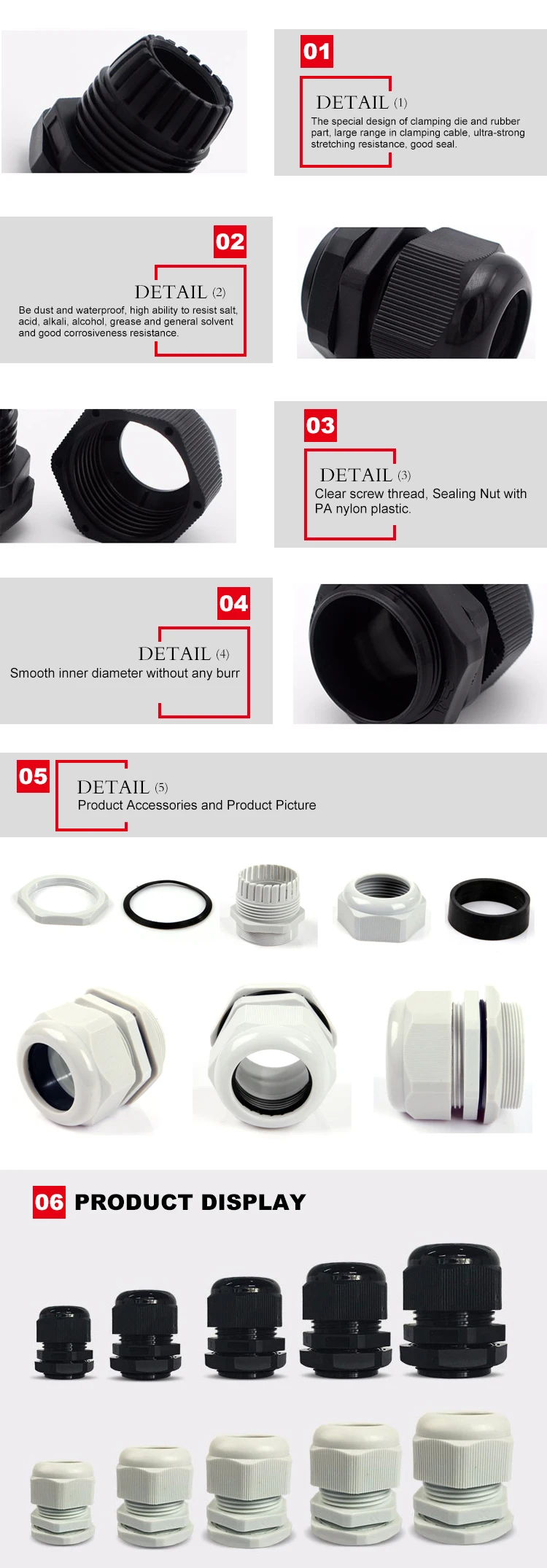

About Cable Gland

1.Material:brass,nickel plated Claw:PA
2.Sealing and sealing ring:NBR Approvals;CE,ROHS Protection degree:IP68
3.Temperature Resistance:-40CC to 10O^.short time to 120^.
4.Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.
5.Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.

plastic cable gland m10

AGCable Size (mm)GL (mm)H (mm)
M12x1.53-6.5922
M12x1.52-5922
M16x1.54-8926
M16x1.52-6926
M18x1.55-10927
M18x1.53-7927
M20x1.56-121028
M20x1.55-91028
M22x1.510-141030
M22x1.57-121030
M24x1.512-151030
M24x1.510-121030
M25x1.513-181035
M25x1.59-161035
M27x1.513-181035
M27x1.59-161035
M30x1.516-211134
M30x1.513-181134
M32x1.516-211134
M32x1.513-181134
plastic cable gland m10

How To Use

plastic cable gland m10

1.Waterproof cable gland is the matching product of cable, mainly using in the distribution cabinet and distribution box.

2.Gland can lock the cable, the other end of it can plug into to equipment cabinet, screw threads available upon request.

3.The port is on the inner screw threads of electric equipments. It can clamp cables effectively to be waterproof.

4.According to installation materials, it can be divided into pyrocondensation type (the most common one), dry package type, epoxy resin filling type and contraction type.

5.According to core materials, it can be divided into copper core power cable and aluminum core power cable.

6.It can make wiring connecting and keep cable seal, and assure the cable gland can be in insulation protection, so that make it safe to work.

7.If the seal is not so good, it will lose oil and make oil-impregnated paper dry, and the humidity will immerse to the inner of cable to degrade the insulation ability.

plastic cable gland m10

Packaging & Shipping

PACKAGE:

Standard export carton packing.

DELIVERY TIME:

3-20 days after confirming order,detail delivery date should be decided according to
production season and order quantity.

plastic cable gland m10
FAQ

plastic cable gland m10

Are you a factory?

We are the manufacturer, we establish in 2004 , have 14 years experiences in this field. also we establish the trading company to make easy export.

What is MOQ?

No limit.

How long is the delivery time?

It depends on the quantity.
For samples or regular items in small qty ,we promise to sent in 1-3 days. Most have in stock.
For mass production, such like 20ft container we promise to sent in 15-30 days.

How can we get the samples?Is it free?

We provide free samples by express, but you need pay the express charge or make samples collection at your side.

What's the price?

Different items different market will be different cost, we will keep to give best and competitive price for each customer.

About Our Company
Websitewww.conwell.en.alibaba.com
Business TypeManufacturer
LocationYueqing,Zhejiang,China (Mainland)
Year Established2004
Main Product1.Insulation Piercing Connector
 2.Anchor Clamp
 3.Suspension Clamp
 4.Parallel Groove Clamp
 5.Waterproof Junction Box
 6.Lightning Protection Products
 7.Pre-insulated Sleeve,Lug
 8.Bimetal lugs
 9.Other ODM Product
Testing Supplier VerificationRaw material from public company
Quality Management SystemTest strictly done by ISO,EN UL and other relative standard
