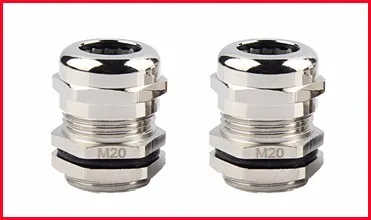

IP68 stainless steel PG7 metal cable glands

FOB Reference Price:Get Latest Price
$0.32 - $3.69 / Piece | 100 Piece/Pieces (Min. Order)
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CONWELL
Model Number:
KWM-PG11
Size:
10-5mm
Material:
Brass, Brass
Protection Level:
IP68
Product name:
metal cable glands
Working temperature:
-40~+100
Cable Size:
8-4 mm
Thread:
NPT
OEM/ODM:
Available
Sample:
Supply free sample
Surface treatment:
Nickel-plated
Certificate:
RoHs,CE,ISO9001
CONWELL:
Factory
Supply Ability
Supply Ability:
100000 Piece/Pieces per Week
Packaging & Delivery
Packaging Details
Professional export packing
Port
SHANGHAI/NINGBO/SHENZHEN/XIAMEN/QINGDAO
About Our Experience
Related Product
Product Parameter

IP68 stainless steel PG7 metal cable glands

1.Material:brass,nickel plated Claw:PA
2.Sealing and sealing ring:NBR Approvals;CE,ROHS Protection degree:IP68
3.Temperature Resistance:-40CC to 10O^.short time to 120^.
4.Thread length:Standard thread type is used for the equipment which has inner thread or for the thin board. Longer thread type is used for the thick board.

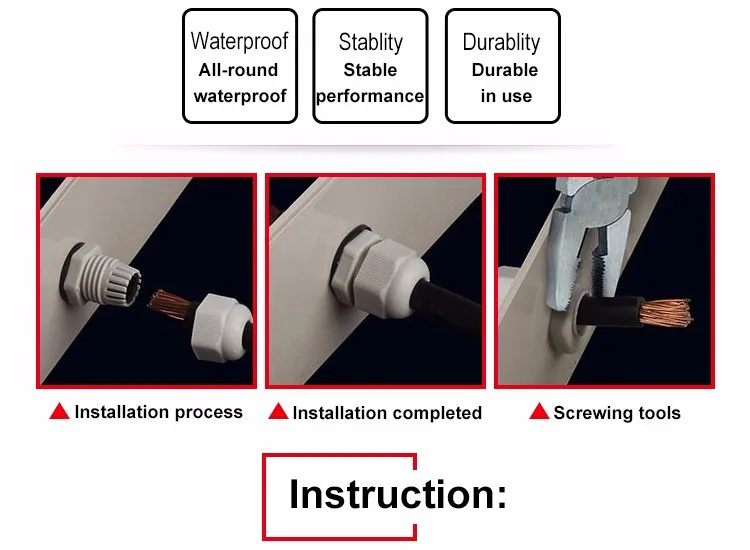

5.Function:Extremely easy installation,simply insert cable through the assembled gland and tighten gland locknut until cable is secured These cable glands.are designed to withstand water.dust.salt,acid-base,alcohol.oil and common solvent.

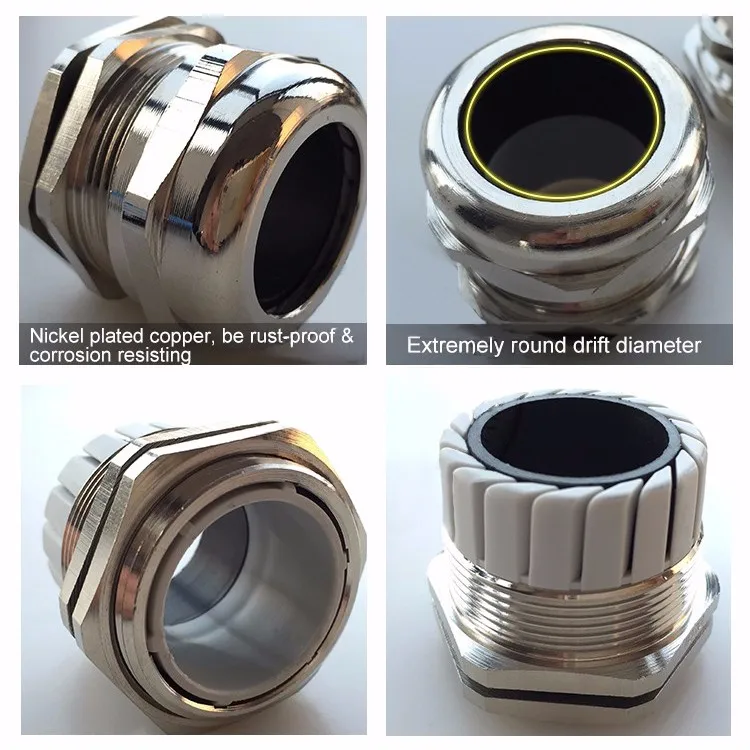

Metal Cable Gland

--Thread:PG,MG and NPT tread
--Material of body: Nickel-plated Brass
--Material of seal:Polyamide 66
--Material of sealing:NBR
--Protection Degree:to IP68

--Temperature Range
Stat: -40℃ to 100℃ short-time 120℃
Dyn: -20℃ to 80℃ short-time 100℃

Item AG
Cable Range (mm)
Thread O.D. (mm)
Mounting Hole Diameter (mm)
Thread Length GL (mm)
Joint Length (mm)
PG7
6.5-3
12.5
12.5-12.7
7
19
PG7
5-2
12.5
12.5-12.7
7
19
PG9
8-4
15.2
15.2-15.4
8
20
PG9
6-2
15.2
15.2-15.4
8
20
PG11
10-5
18.6
18.6-18.8
8
21
PG11
7-3
18.6
18.6-18.8
8
21
PG13.5
12-6
20.4
20.4-20.6
8
22
PG13.5
9-5
20.4
20.4-20.6
8
22
PG16
14-10
22.5
22.5-22.7
9
23
PG16
12-6
22.5
22.5-22.7
9
23
PG19
14-10
25
25-25.2
9
25
PG19
16-8
25
25-25.2
9
25
PG21
18-13
28.3
28.3-28.5
9
27
PG21
16-9
28.3
28.3-28.5
9
27
PG25
22-15
32
32-32.2
10
29
PG25
20-16
32
32-32.2
10
29
PG29
25-18
37
37-37.2
11
31
PG29
20-13
37
37-37.2
11
31
PG36
33-25
47
47-47.2
12
37
PG36
26-20
47
47-47.2
12
37
PG42
38-32
54
54-54.2
13
38
PG42
31-25
54
54-54.2
13
38
PG48
44-37
59.3
59.3-59.5
14
38
PG48
35-29
59.3
59.3-59.5
14
38
PG63
52-42
72
72-72.2
15
42
How To Use

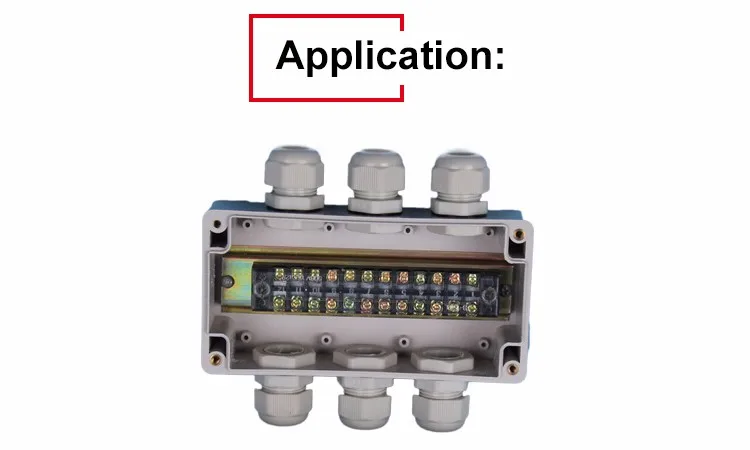

1.Waterproof cable gland is the matching product of cable, mainly using in the distribution cabinet and distribution box.

2.Gland can lock the cable, the other end of it can plug into to equipment cabinet, screw threads available upon request.

3.The port is on the inner screw threads of electric equipments. It can clamp cables effectively to be waterproof.

4.According to installation materials, it can be divided into pyrocondensation type (the most common one), dry package type, epoxy resin filling type and contraction type.

5.According to core materials, it can be divided into copper core power cable and aluminum core power cable.

6.It can make wiring connecting and keep cable seal, and assure the cable gland can be in insulation protection, so that make it safe to work.

7.If the seal is not so good, it will lose oil and make oil-impregnated paper dry, and the humidity will immerse to the inner of cable to degrade the insulation ability.
