aluminium and copper bimetallic Parallel Groove Connector / PG clamp / bimetal wire clamp

FOB Reference Price:Get Latest Price
$0.49 - $0.69 / Pieces | 100 Piece/Pieces Parallel Groove Connector (Min. Order)
Shipping:
Support Sea freight
Samples:
Report Suspicious Activity
Overview
Quick Details
Place of Origin:
Zhejiang, China
Brand Name:
CONWELL
Model Number:
CAPG-B2
Product name:
Parallel Groove Connector
MATERIAL:
AL , CU
Cu application conductor section:
Cu 10-95 mm2
Al application conductor section:
Al 25-150 mm2
Bolt Size:
2*M8*50
Application:
Connecting Bare Cable
Service:
OEM / ODM / Customized
CONWELL:
Parallel Groove Connector Factory
Supply Ability
Supply Ability:
40000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
1.Normal Package:Inner Box + Carton
2.Specific packaging can be made to order.
Port
Ningbo/ Shanghai
Lead Time :
100,000/2 WEEKS Parallel Groove Connector



Product Description

Description
CAPG Cu-Al Parallel Groove Connector is used for the Non-bearing connection and offset of aluminum stranded wire, aluminum stranded wire, it's used with insulating cover for the effect of protective and insulation.
Product Detail

CAPG-A Drawing & Detail
TypeConductor cross section(mm2)Bolt
CAPG-A1Cu 6-50 Al 16-701xM8x40
CAPG-A2 Cu 10-95 Al 25-1501xM8x45

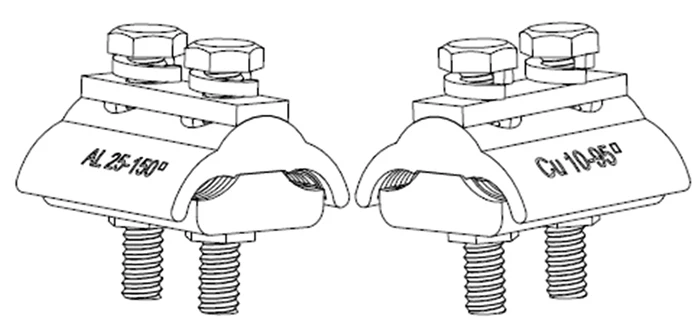

CAPG-B Drawing & Detail

CAPG-B1 Cu6-50  Al 16-702xM8x45
CAPG-B2Cu 10-95  Al 25-1502xM8x50
CAPG-B3Cu 25-185   Al 35-2002xM10x60

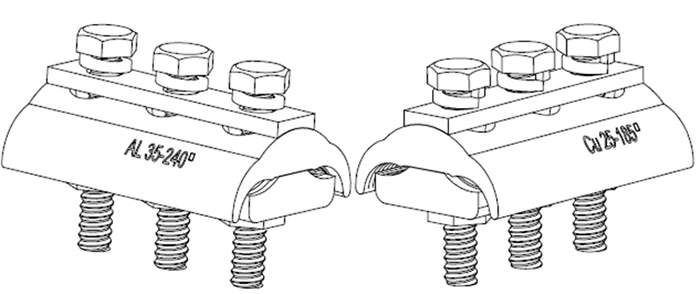

CAPG-C Drawing & Detail

CAPG-C1Cu6-50   Al 16-703xM8x45
CAPG-C2Cu10-95   Al 25-1503xM8x50
CAPG-C3 Cu25-185   Al 35-2403xM10x60
CAPG-C4Cu35-240   Al 35-3003xM10x70





Packaging & Shipping

Packaging



1.Normal Package:Inner Box + Carton

2.Specific packaging can be made to order.



Shipping

You can specify other shipping methods such as Airmail, FEDEX or DHL. We shall let you know about the shipping cost after receipt of your order.

And also can send by sea or air, kindly send me the port of yours.





Our Services

Specializing in anchor clamps 14 years

Our canpany is one of the most professional manufacturers in the production of the aerial cable accessories in China,which specializing in insulation piercing connector, anchor clamp, suspension clamp 14 years.



Powerful factory

100 experienced workers to ensure the production of nothing but the finest quality ,most of them make cable accessories for 5 yeasr in our factory, someone of them make cable accessories for 10 years in our factory. we has 7 producton lines,supply ability reach about 15000 pieces insulation piercing connectors each day.



Customized service

Specific sizes, types & colors can be made to order. You can send us your details and we shall prepare individual quote upon receipt of your information.





Company Information
ABOUT CONWELL

 Business Type

Manufacturer
 LocationYueqing, Zhejiang, China (Mainland)
 Year Established2004
 Main Porduct1.Insulation Piercing Connector
 2.Anchor clamp
 3.Suspension Clamp
 4.Parallel Groove Clamp
 5.Pre-insulated Sleeve & Lug
 6.Bimetal Lugs
 7.Insulator
 8.Drop Fuse
 9.Surge Arrester
 10.Cable Resin Plastic Box
 11.Plastic Junction Box
 12.Other ODM Products
 Testing Supplier VerificationRaw material from public company
 Quality Management SystemTest strictly done by ISO,EN UL and other relative standard
 Service

We especially have advantage on OEM and ODM of all metal and plastic power connection accessories. We devote to providing full range of product chain and solution.

Factory Details

Exhibition
